Ford Transit Van Aftermarket Conversion Windows (4th Gen 2013 – Present)

We look forward to enhancing your Ford Transit van conversion experience by making sure you are fitted with the very best windows sold on the market at a value you will appreciate. With over 40 years of experience in the industry, our reputation as the leader in quality is unmistakable. The Transit windows we offer for the various cargo van models for the fourth generation van (2013 – Present) are all uniquely custom manufactured and built to order.

New windows for your Ford Transit are manufactured using high quality automotive powder coated aluminum extrusions and suited with dark automotive greylite 14 tinted (standard) or clear (upon request) 1/4″ solid tempered safety glass. Because of the unique sidewall curvature of cargo vans, our aftermarket Transit windows are built in a t-slide configuration to accommodate this curvature—the top half of the window is fixed—the bottom half slides horizontally (see attached pictures for details). Standard features of the windows include sliding screens, interior clamp-rings and black color keyed stainless steel screws for installation.

These RV windows are manufactured as an aftermarket add-on. They are not intended in size to replace any factory glass or pre-existing windows. We are experts on windows, not vans. We are not a van converter and do not offer specific knowledge on cutting holes or exact window placement on your van – that part will be up to you or your van conversion outfitter.

For other van conversion windows: Mercedes Metris, Ram Promaster and Sprinter Van (First Generation 2000-2006 & New Generation 2007-Current).

Specification Details

Glass: 1/4″ tempered glass
Glass Tint: Dark Grey (Standard) or Clear (Upon Request)
Frame: Powder-Coat Black
Standard Amenities: Sliding removable screen

: SKU# Transit-SS Passenger

: SKU# Transit-1 & SKU# Transit-SS Passenger

: SKU# Low Transit-2 & SKU# Low Transit-3 Driver

: SKU# Transit-1, SKU# Low Transit-3 Passenger & SKU# Med Transit-3REG Passenger

: SKU# Transit-1

: SKU# Transit-1 & SKU# High Transit-3 Passenger

Installation Resources

Installation Guide Printable Version

Customer’s Blog: Window Installation Instructions

Cross Section View of Typical Installation

Pricing

Caution: These Parts Do Not Replace Factory Glass.

Transit-SS

SKU# Transit-SS
Fits All Models - Half-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	35-3/4" x 9-3/4
Exterior Flange Dimensions (W x H):	37-1/4" x 11-1/4
Price:	$276.00 ea.

Low Roof Regular

SKU# Low Transit-1
Low Roof Transit Front Quarter Panel T-Slider
Position:	Passenger
Interior Frame-Fit Dimensions (W x H):	38-5/16" x 14-7/8
Exterior Flange Dimensions (W x H):	39-13/16" x 16-3/8
Price:	$407.00 ea.

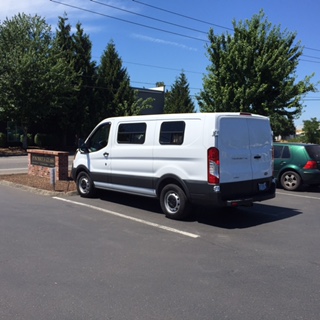

SKU# Low Transit-2
Low Roof Transit Front Quarter Panel T-Slider
Position:	Driver
Interior Frame-Fit Dimensions (W x H):	38-5/16" x 16-1/2
Exterior Flange Dimensions (W x H):	39-13/16" x 18
Price:	$415.00 ea.

SKU# Low Transit-3
Low Roof Transit Rear Quarter Panel T-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	25" x 16-1/2
Exterior Flange Dimensions (W x H):	26-1/2" x 18
Price:	$322.00 ea.

Low Roof Long

SKU# Low Transit-1
Low Roof Transit Front Quarter Panel T-Slider
Position:	Passenger
Interior Frame-Fit Dimensions (W x H):	38-5/16" x 14-7/8
Exterior Flange Dimensions (W x H):	39-13/16" x 16-3/8
Price:	$407.00 ea.

SKU# Low Transit-2
Low Roof Transit Front Quarter Panel T-Slider
Position:	Driver
Interior Frame-Fit Dimensions (W x H):	38-5/16" x 16-1/2
Exterior Flange Dimensions (W x H):	39-13/16" x 18
Price:	$415.00 ea.

SKU# Low Transit-3
Low Roof Transit Rear Quarter Panel T-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	25" x 16-1/2
Exterior Flange Dimensions (W x H):	26-1/2" x 18
Price:	$322.00 ea.

Medium Roof Regular

SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position:	Passenger
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position:	Driver
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# Med Transit-3REG
Medium Roof Transit Rear Quarter Panel T-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	32-7/8" x 23-3/8
Exterior Flange Dimensions (W x H):	34-3/8" x 24-7/8
Price:	$370.00 ea.

Medium Roof Long

SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position:	Passenger
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position:	Driver
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# Med Transit-3LONG
Medium Roof Transit Rear Quarter Panel T-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	43-7/8" x 23-3/8
Exterior Flange Dimensions (W x H):	45-3/8" x 24-7/8
Price:	$406.00 ea.

High Roof Long

SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position:	Passenger
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position:	Driver
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# High Transit-3
High Roof Transit Rear Quarter Panel T-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	36-7/8" x 23-3/8
Exterior Flange Dimensions (W x H):	38-3/8" x 24-7/8
Price:	$383.00 ea.

High Roof Extended

SKU# Transit-1
Medium & High Roof Transit Side Door T-Slider
Position:	Passenger
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# Transit-2
Medium & High Roof Transit Front Quarter Panel T-Slider
Position:	Driver
Interior Frame-Fit Dimensions (W x H):	40-5/8" x 23-7/8
Exterior Flange Dimensions (W x H):	42-1/8" x 25-3/8
Price:	$455.00 ea.

SKU# High Transit-3
High Roof Transit Rear Quarter Panel T-Slider
Position:	Driver or Passenger
Interior Frame-Fit Dimensions (W x H):	36-7/8" x 23-3/8
Exterior Flange Dimensions (W x H):	38-3/8" x 24-7/8
Price:	$383.00 ea.
